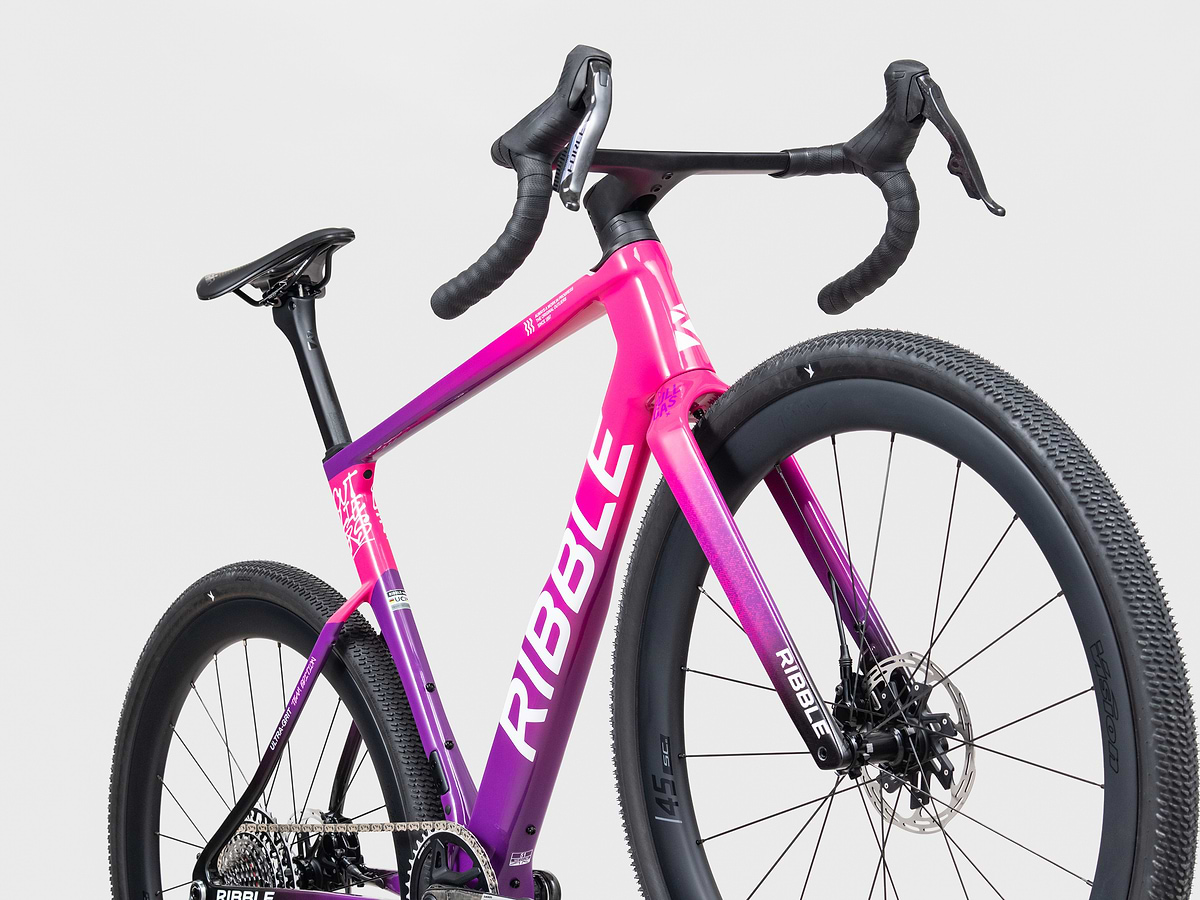

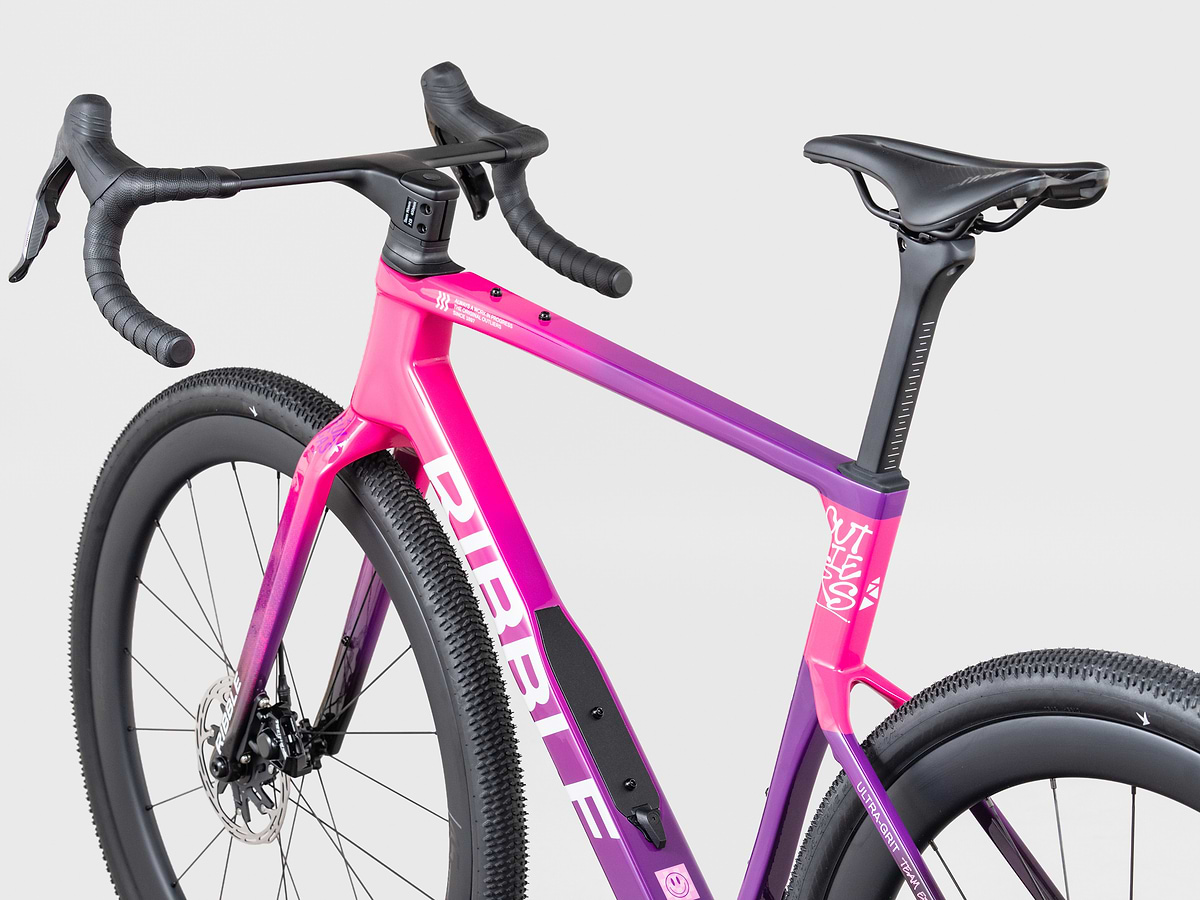

Ultra-Grit Outliers Edition Force XPLR AXS
This bike is currently out of stock.
Ways to pay
Why Ribble?
BUILT TO ORDER
Every Ribble is built to order by our skilled mechanics in Lancashire, UK.
LIFETIME FRAME WARRANTY
Ride hard, worry free – all our bikes have a lifetime frame and fork warranty.
30-DAY RIDE-OUT GUARANTEE
Make sure you get the perfect fit - if you're not 100% happy, return it for a full refund or swap. Terms and conditions.
30 DAYS FREE BIKE INSURANCE
Every new Ribble comes with 30 days cover included, so you’re protected from day one.
BUY DIRECT
Get more bike for your money, and have our expert team on hand if you need support.
Description

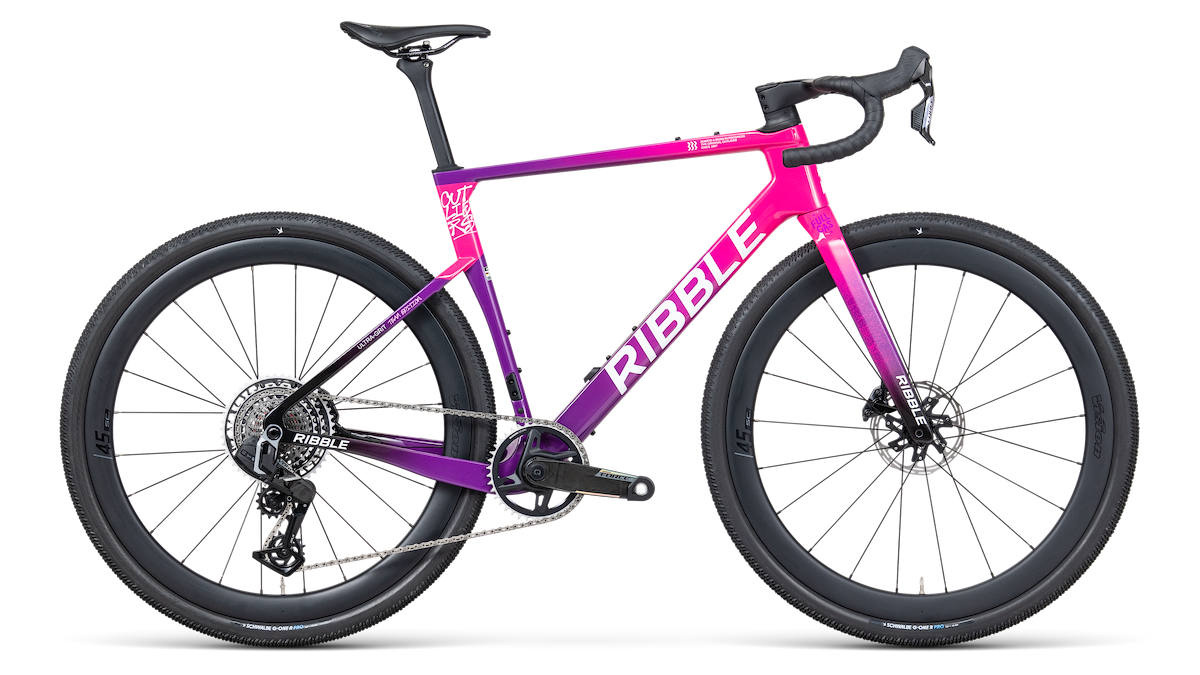

ULTRA-GRIT 2026 Team Edition is our fastest gravel bike yet, forged in the chaos of the world’s toughest off-road races. Proven by the Ribble Outliers with multiple UCI and Gravel Earth World Series podiums, it’s been pushed to the limit at Unbound, The Traka and Dirty Reiver. At just 8.3 kg, a lightweight aero frameset pairs with SRAM Force XPLR AXS E1 and an integrated power meter, Vision SC45 carbon wheels and 45 mm Schwalbe tyres to deliver outright speed, confident control on loose terrain, and composure when it counts.

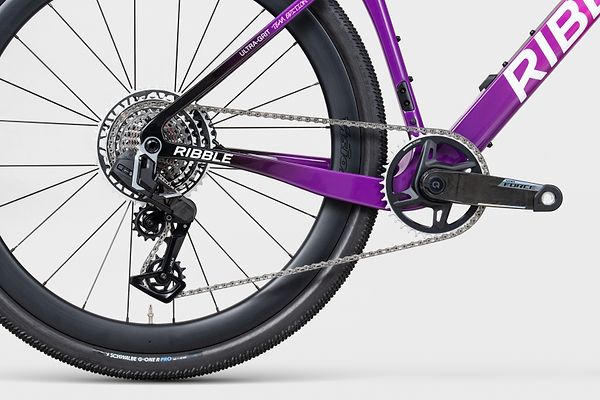

Groupset
SRAM Force XPLR AXS E1 is built for riders who like to ride gravel fast and stay in control when it gets rough. Shifting is smooth and dependable when the surface turns loose, braking feels calm and confident when speeds rise, and the wide gearing keeps you pushing on climbs without losing momentum on the flats.
An integrated power meter tracks your effort as you ride, while the AXS app lets you tailor how the components behave, check battery levels, get maintenance reminders and keep everything up to date from your phone. Light, tough and effortlessly dialled, it’s a setup that’s ready for big days, hard racing and whatever the route throws at you.

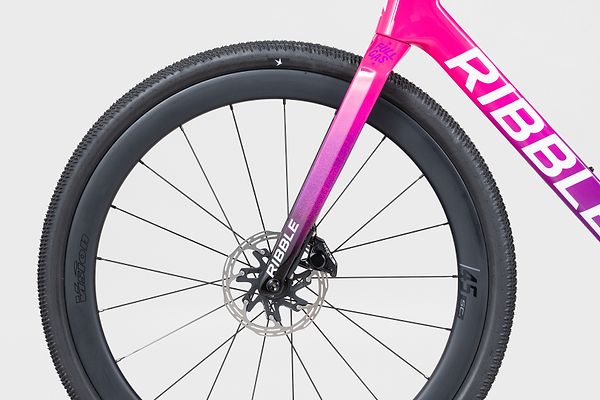

Wheelset
The Vision SC45 carbon wheels hit the sweet spot for gravel riding, giving you speed on the straights and steady control when the wind picks up. The 45 mm depth keeps things fast without feeling twitchy, while the wide rim profile helps smooth out rough ground for a more composed ride. Paired with 45 mm Schwalbe G-One R Pro tyres, the setup rolls quickly on hardpack and tarmac but still delivers the grip and stability you need when the surface turns loose or unpredictable.

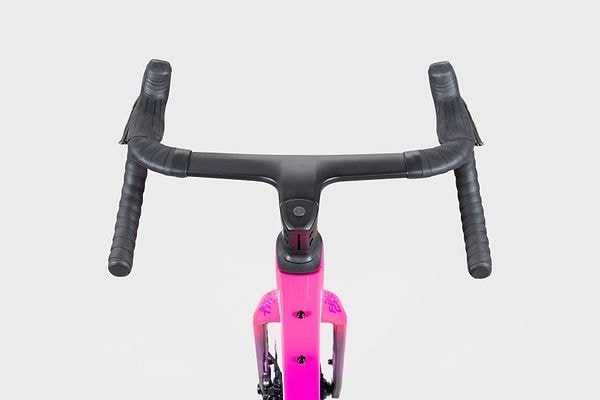

Handlebars
The Ribble Aero Gravel integrated handlebars are built to feel fast, clean and confident from the first turn of the pedals. The carbon construction keeps the front end sharp when you’re pushing on, while the aero shape helps you hold speed more easily on open sections. Flared drops add extra control when the surface turns rough, and the comfortable shaping makes long days feel easier on your hands. Fully hidden cables finish it off with a clean, uncluttered look that matches the bike’s performance-led feel.

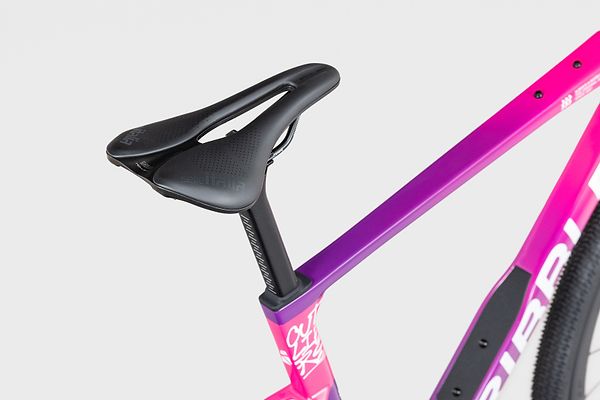

Saddle

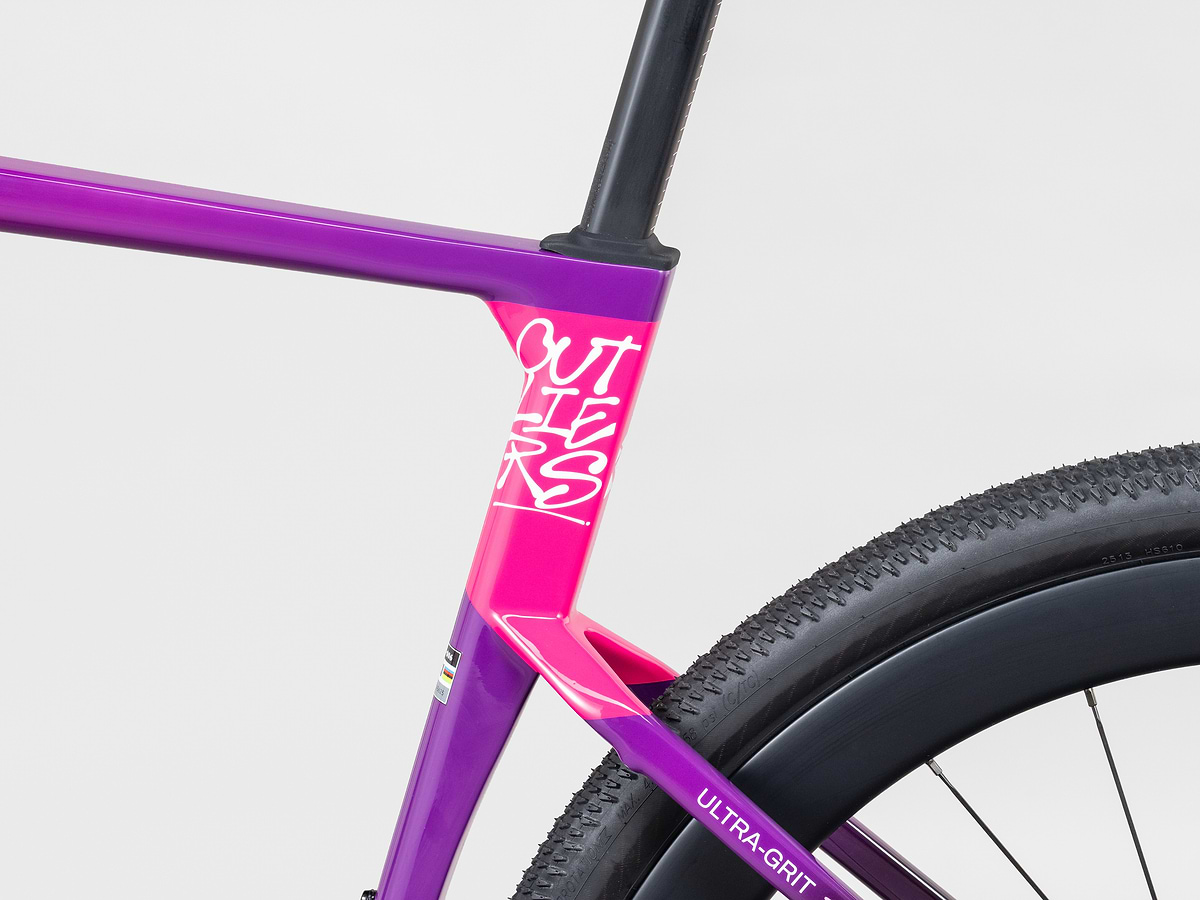

The integrated seatpost clamp works with our D-shaped carbon seatpost and Selle Italia Novus Boost Evo Superflow saddle to smooth out rough ground and take the edge off trail buzz. The result is a stable, comfortable ride that feels fresher for longer when the terrain gets tough.

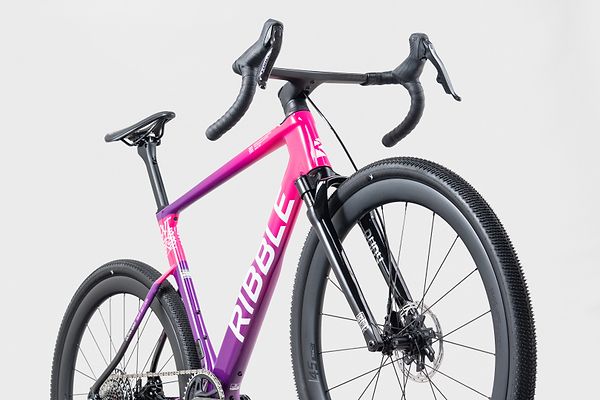

Suspension Fork Upgrade
When the gravel turns rough and the terrain gets technical, the RockShox Rudy Ultimate fork steps in to smooth out the ride. Available as an upgrade on the Ribble ULTRA-GRIT, this premium suspension fork is purpose-built for gravel racing, offering up to 30mm of tunable travel for improved comfort, control, and confidence. Whether you're carving through gravel or hammering down technical descents, Rudy’s refined damping and lightweight design help you stay fast, focused, and in total command.

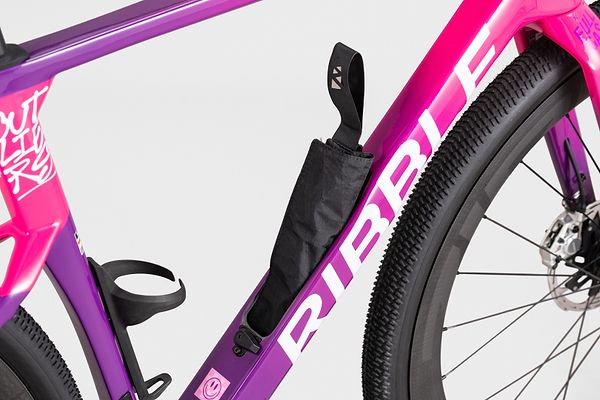

Frame Storage
ULTRA-GRIT features a dedicated internal downtube storage compartment, built to keep your essentials such as spares, nutrition, tools accessible mid-ride without saddlebags, external clutter or aerodynamic compromise. The compartment is compatible with the optional Ribble RIFFT Tool Wrap, a purpose-designed wrap that organises your kit inside the frame for clean, silent, rattle-free storage. Slide it out, sort what you need, slide it back in.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
5'3 - 5'7
159 - 169cm
5'6 - 5'9
167 - 176cm
5'9 - 5'11
174 - 181cm
5'10 - 6'1
179 - 186cm
6'0 - 6'4
184 - 193cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Blanking Door Alloy
- Carbon D-Shaped Inline Seatpost Matt Black - 280mm
- Chainstay Protector
- Compression Bushing Fits Stealth-a-Majig System AL
- DUB BSA 68mm Road WIDE Bottom Bracket
- Disc Caliper Bolt Black 27mm
- Embossed Black Bar Tape
- Force AXS E1 Shift Lever & Caliper LH
- Force AXS E1 Shift Lever & Caliper RH
- Force E1 Flattop 12/13spd Chain 120 Links
- Force XPLR AXS E1 PM DUB Wide Crankset 165mm 40T
- Force XPLR AXS E1 Rear Derailleur
- Force XPLR XG-1371 Cassette 10-46T
- Frame Storage Door
- G2 SLR SLRE Front Mech Blanking Plate
- Integrated Seatpost Wedge
- M3 10mm Hex 2 Countersunk P0.5 SSA2
- M4 16mm Hex 2.5 Countersunk P0.7 Black
- M5 12mm Hex 2.5 Grub P0.8 Black
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 16mm Hex 3 Countersunk P0.8 Black
- MY24/25 Carbon Rubber Seat Clamp Cover
- Needle Insert Fits Stealth-a-Majig System SS
- Open Hose Door Oval Plastic
- Paceline A2 CL Rotor 160mm
- Powerpack 1 Battery & Charger (cable not included)
- Rotor Lockring Internal Spline
- Rubber Circular Bung - 10mm Domehead 8mm Post
- Seatpost Wedge Nut
- Seatpost Wedge Plug
- Storage Door Latch & Fasteners (4PCS)
- Storage Door Latch Base
- Storage Door O-Ring
- Thru Axle Lever
- UDH Rear Thru Axle
- Ultra-Grit Frame Outliers MY26 Pink XSM 47cm
- Warning sticker sheet Torques to be applied at PDI
Fork
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- MY24/25 Front Thru Axle
- R457B Headset Bearing
- Ultra-Grit Carbon Fork Outliers MY26 Pink
Wheelset
- G-One R PRO Evo V-Guard TLR Tyre Black 700x45mm
- Inner Tube SV17 700x28/47 Presta 60mm
- SC45 Disc Front Wheel 700c CL
- SC45 Disc Rear Wheel 700c CL XDR
Handlebar
- Aero Gravel Carbon INT Bar & Stem 38-43cm x 80mm
- Flat Washer 1mm x M5 x 9mm SSA2
- Logo Top Cap Bung
- M6 45mm Hex Countersunk P1.0 SSA2 Black
- Plastic Compression Spider 42mm ID +1.0
- RS Spacer 10mm
- RS Spacer 5mm
- RS-2 Stem Headset Bearing Cover Kit
Saddle
- Novus Boost EVO Superflow Saddle
FAQ's
If you're between sizes on the ULTRA-GRIT, we generally recommend choosing the smaller option. It's easier to fine-tune the fit of a smaller frame by raising the seat post or using a longer stem, whereas a larger frame leaves much less room for adjustment.
Build weights are provided for a medium‑sized frame and are intended solely as general guidance. Actual weight will vary based on the selected components and accessories, as well as standard manufacturing tolerances. These figures do not constitute a guarantee or warranty of final product weight, and we may occasionally make minor modifications to specifications without prior notice.
- Apex XPLR AXS build: 9.0 kg (carbon forks) / 9.7 kg (RockShox Rudy Ultimate)
- Rival XPLR AXS build: 8.9 kg (carbon forks) / 9.6 kg (RockShox Rudy Ultimate)
- Force XPLR AXS build: 8.3 kg (carbon forks) / 9.0 kg (RockShox Rudy Ultimate)
- Red XPLR AXS build: 8.0 kg (carbon forks) / 8.7 kg (RockShox Rudy Ultimate)
- Outliers Edition build: 8.0 kg (carbon forks) / 8.7 kg (RockShox Rudy Ultimate)
- SPORTFIT build: 8.9 kg (carbon forks) / 9.6 kg (RockShox Rudy Ultimate)
- Frame only (medium): 890 g (raw finish)
Like all Ribble bikes, the ULTRA-GRIT is covered by a lifetime warranty on frame and forks for the original purchaser. This includes any manufacturing defects in materials or workmanship. The standard manufacturer's warranty applies to all other components including 3rd party suspension forks.
Yes, the ULTRA-GRIT frameset is UCI-approved and has been raced extensively by our pro gravel team, the Outliers.
Yes. The ULTRA-GRIT is available with the optional RockShox Rudy suspension fork. This upgrade improves comfort and control on rougher gravel trails, helping you stay fast and confident when the terrain gets technical.
Yes. The ULTRA-GRIT features enhanced cable integration for a clean, cable-free look. Cables are hidden from view, protected from the elements and shielded from drag.
The ULTRA-GRIT comes equipped with fast, grippy and versatile 45 mm gravel tyres, with frame clearance for tyres up to 50 mm wide. When mudguards are fitted, maximum clearance is reduced to around 45 mm, depending on tyre brand and tread. The fork can also accept a 29 x 2.1" (700 x 53c) mountain bike tyre.
Yes. The ULTRA-GRIT can be fitted with a rear pannier rack using our adaptor kit, providing a practical way to carry up to 15 kg of extra gear (kit sold separately).
Yes. A removable mudguard bridge makes fitting mudguards easy (kit sold separately). We also offer a combined mudguard and rack-mount kit for anyone looking to fit both.
The ULTRA-GRIT is compatible with a 68 mm BSA threaded bottom bracket. BSA threaded bottom brackets offer advantages over press-fit designs, particularly in terms of ease of installation, maintenance and reduced creaking. The threaded design provides a more robust connection, and the standardised threads make it simpler to install and remove.
The ULTRA-GRIT features a 1.5" integrated headset and R457B 52 x 42 x 7 mm 45° x 45° headset bearings top and bottom.
The ULTRA-GRIT features a D-shaped carbon seatpost with an integrated wedge clamp, designed for compatibility with carbon-railed saddles. XS–SM frames are equipped with a 280 mm post, while M–XL frames come with a 330 mm post.
The ULTRA-GRIT features two bottle cage mounts with one on the seat tube and one on the downtube. Both are positioned to work seamlessly with Ribble Aero Bottle Cages for optimal aerodynamic performance.
The ULTRA-GRIT includes extra luggage mounts on the top tube and underneath the downtube.
Thru Axles:
- Front: M12 x 1.5 mm x 123 mm
- Rear: M12 x 1.0 x 174 mm
Yes. While the ULTRA-GRIT comes with a 1x drivetrain, it can also accommodate a braze-on front derailleur using an optional derailleur hanger (sold separately) and 2x gravel chainsets (31T/48T max).
The ULTRA-GRIT uses a universal derailleur hanger (UDH), standardising hanger design across bikes. That means no more hunting for a frame-specific hanger with just one simple, universal solution.
The ULTRA-GRIT has a maximum recommended system weight of 120 kg, including bike, rider and luggage.
No. Pedals aren’t included as riders use different systems. You can, however, choose from a range of best-selling pedals when configuring your bike.
